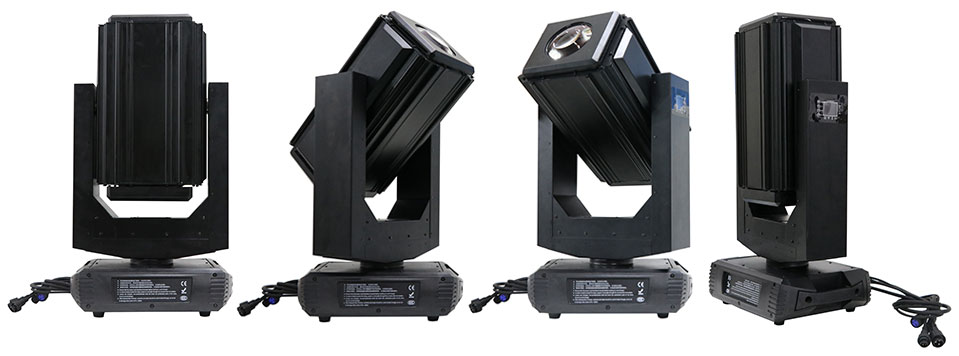

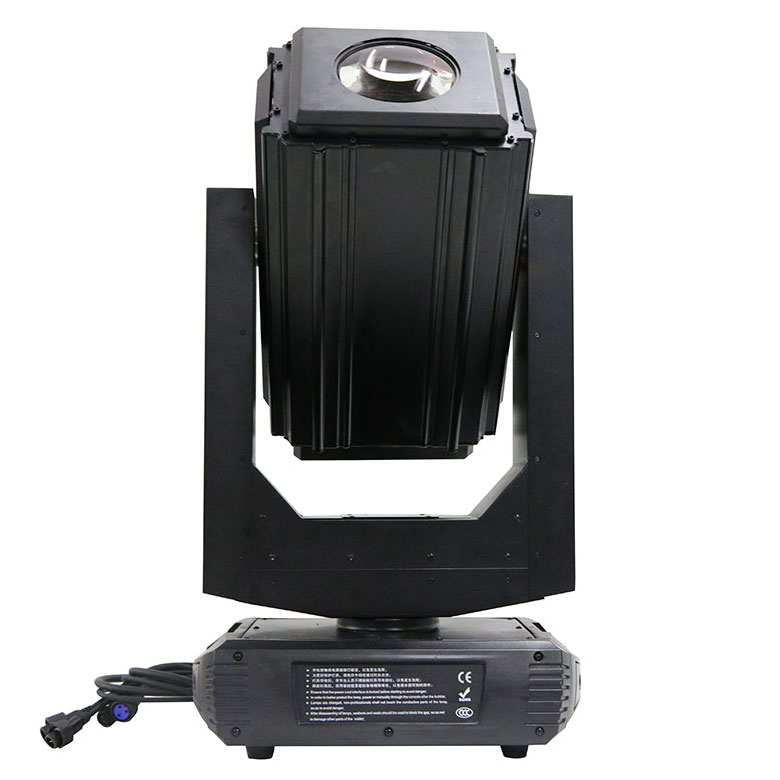

LED450W waterproof beam pattern moving head light triple
Detail Info



Product Name: Outdoor Beam Pattern Dyeing Multifunctional Lamps
1, LED light source life of up to 50,000 hours;
2, waterproof performance, the first waterproof rating: IP65, the bottom of the IP67 completely soaked in the water will not affect the normal work of the lamp;
3,360 degrees waterproof design: exclusive structure of patented property, inverted, side hanging, are placed can be waterproof, the use of more convenient;
4, high heat dissipation design: exclusive cooling system structure patented property rights, in addition to hot and cold air circulation heat, the first use of the principle of hole-type thermal conductivity, low temperature, good heat dissipation, light source brightness attenuation is minimal, to maximize the use of light to ensure life;
5, the lamp is small, light weight (the whole light weight 30 kg) are no base and a base two ways to choose to reduce the handling, the use of light;
6, powerful: double prism effect plate, double pattern effect plate, with atomization, strobe and 13 kinds of colors to choose from; and all patterns can be achieved linear zoom or zoom adjustment;
7, the lamp with a diameter of 180MM large diameter optical, to ensure that ultra-thick beam beam and high brightness light effect;
8, the lighting technology elements add more, XY axis operation using a new electronic chip positioning system, positioning more accurate, more stable and smooth work; also built-in remote control system, you can achieve remote automatic adjustment of address code, remote control lock or Decoding function; equipped with wireless DMX control system, the signal connection is far more convenient to use the place; LED450W waterproof beam pattern moving head light triple Product Model: JYL-LP800F Product power: light power 450W total power of about 860W
Rated voltage: AC100V-220V, 50 / 60Hz
Light source specifications: LED450W light source life of up to 50000 hours
Beam angle: parallel beam angle 1 ° ~ 3 °, pattern magnification angle 15-56 °, 5 m white light spot 4.5 m straight
Diameter, prism spot 2.3 m diameter, prism superimposed spot 3.5 m diameter;
Linear dimming: mechanical linear dimming 0 ~ 100%
High-speed strobe: pulse strobe, synchronous asynchronous strobe.? Stroke speed 1-26 times per second
Fixed color: 1 fixed color wheel with 9 color + white, can be half-color effect, linear color conversion and two-way variable speed rotation rainbow effect
Dynamic pattern: 1 rotating pattern wheel with 9 optional plug-in pattern + white, rotating pattern Outside diameter: 17mm Effective inner diameter: 15mm, can order customer requirements LOGO, variable speed jitter / two-way flow effect, pattern Index function and 16Bit precise fine tuning
Static pattern: a fixed pattern wheel with 14 patterns + white (new design), variable speed jitter / two-way flow effect, all fixed patterns and rotating patterns can achieve linear stepless zoom function, to achieve a pattern can cover a wall ;
Prism: 2 separate rotating prism, standard is a 3 prism +5 prism, and all prisms can be achieved linear stepless zoom function;
Focus: large diameter high-precision glass optical lens, electronic linear focus, 5 meters each effect
Can be clearly adjusted; to ensure that ultra-thick beam beam show and high brightness light effect
Atomization: 1 independent atomization effect, light spot soft and natural;
Horizontal and horizontal: Horizontal scanning angle of 540 ° (16BIT precision scanning), vertical scanning angle of 270 ° (16BIT precision scan) Display interface: widescreen touch LCD display with dimming function and digital point pull function, can be reversed 180 ° display;
Sleep function: the use of today's most advanced technology to achieve remote sleep function, when the lights off the signal automatically enter the sleep state, so that the lamp is more stable and more secure, you can set the sleep time.
CPU control: the use of imported the latest chip-driven, high stability, better temperature, running faster, XY finished a lap only 2 seconds;
Optical system: the use of industry-renowned brands, Yilong optical, can not afford to film, the color is, high temperature, light through the order, higher brightness;
Quality control: in strict accordance with ISO2001: 2008 quality management system requirements for quality control;
Process requirements: the choice of high temperature Teflon wire, the transport site with a screw fixative to strengthen the solid, high-intensity oxidation screw, auxiliary material temperature of 500 ℃ or more;
Power motor: 16 temperature resistant to -20 ℃ +400 ℃ pure copper wire drive motor, which XY axis with three-phase motor power supply, more powerful, more smooth, more quiet;
Communication design: DMX cable / wireless signal transmission, RDM two-way control technology, DMX upgrade version
Intelligent cooling: the use of wind direction and temperature intelligent monitoring speed control system, according to the different temperature of the lamp position, automatically drive the different parts of the lamp cooling fan, the lamp parts for effective cooling; are imported high-speed pure roller fan;
Anti-dry around: the use of double-suction magnet, the lamp body is easy to produce parts of the antibody reinforcement, to prevent the lamp work of a variety of signals dry;
Lamp material: the internal use of reinforced alloy aluminum, light weight, small size; shell with environmentally friendly flame retardant PC material, good elasticity, not easy to crack;
Control channel: 2 channel mode selection 16CH / 24CH, the factory default is 24CH
Lamp weight: net weight 30KG Product size: length 530 * wide 330 * 780MM JYL-LP800F waterproof beam products in addition to professional outdoor rain show, has a large number of outdoor road and bridge, fountains, squares, parks, gardens, scenic, leisure and so on Various outdoor lighting works.
