Voltage: AC110-220V, 50 / 60Hz.

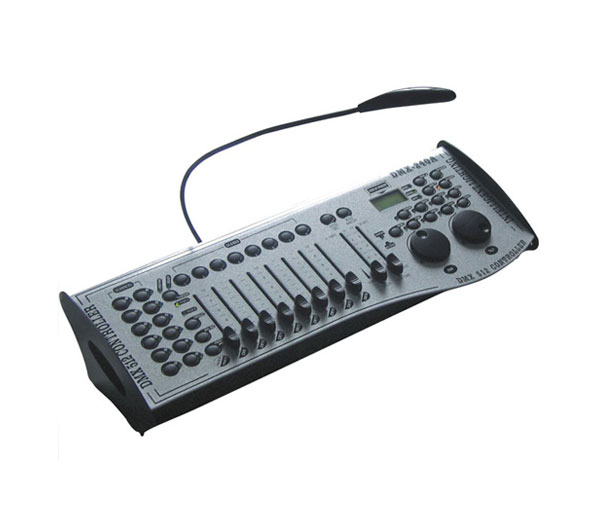

Console size: length 580 × width 180 × high 120 (mm)
Packing size: length 610 × width 210 × height 140 (mm); length 620 × width 440 × high 460 (mm) (6 loaded)
Net weight: 3.2Kg; 22Kg (6 loaded)
Gross Weight: 3.6Kg; 24Kg (6 Pack)
Can be controlled up to 12 lamps, each up to 20 channels, A (1-10) and B (11-20) two pages or AB two pages at the same time start, can be compiled 30 Banks, bank contains 8 Scene, Programming 6 phase chase, each chase can be programmed 240 steps (that is, 30 Bank scenes), with manual, voice and self three modes;
In automatic operation mode, FADE can choose to have all FADE or X / Y with FADE, all have speed adjustment, each lamp can be set in any channel and joystick or dial control.
With MIDI trigger Bank, Chase and Black out functions.
The console can transfer internal programmed data to each other.
LCD liquid crystal display and LED indicator.
DMX polarity selection.
