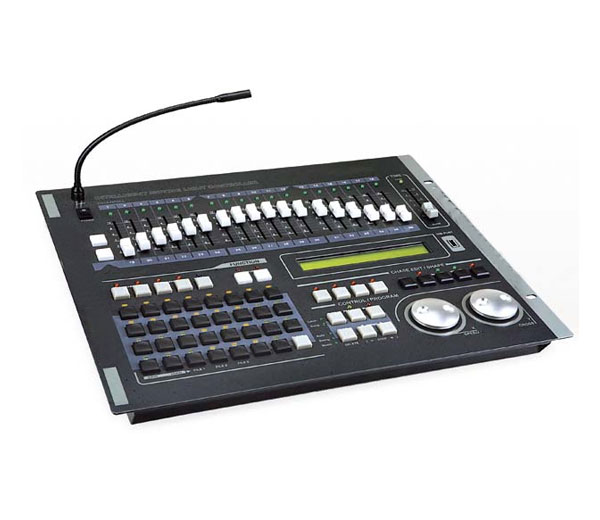

Computer console SP512
Detail Info

Technical Parameters:

Voltage: AC90-250V, 50 / 60Hz.

Console size: length 485 × width 400 × high 105 (mm)

Packing size: length 590 × width 510 × high 260 (mm)

Net weight: 8Kg

Gross Weight: 9Kg



DMX512 / 1990 standard, 512 DMX control channels, optically isolated signal output.

At the same time control up to 62 computer lights, each lamp up to 36 channels, the use of dynamic light field settings.

16Bit X / Y control accuracy, you can set the X / Y axis of the positive and negative direction.

Built-in graphics trajectory generator (SHAPE), user-friendly graphical control of the computer lights, such as round, gradient circle, lines, 8 words, waves and other effects. Graphical parameters (such as: speed, size, expansion, direction) can be set independently.

62 chase programs, up to 100 steps per procedure. Each time (TIME), gradient (CROSS) parameter is set independently. Optional automatic speed control, intelligent manual beat control (SWING) or music synchronization control.

Chase program editing, can achieve chase program copy, paste, add (insert), delete and other operations.

Can run six chase program, 62 preset scenes, and at the same time on the 62 computer lights lantern operation.

31 macro environment programs (MACRO), can quickly call different scenes, chase, manual operation (lantern) combination.

Equipped with USB interface, users can use U disk to save data, file system compatible with WINDOWS XP.
