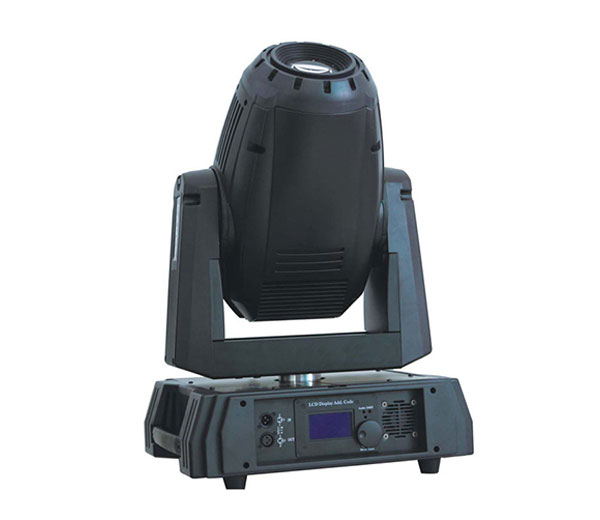

Product details

Voltage: AC220V, 50 / 60Hz

Rated power: 775 watts

Light bulb specification: MSR 575W / 2

Color: a color plate: 8 replaceable color film + blank, half color effect, do two-way variable speed rainbow effect, CTC color temperature correction

Pattern: a fixed pattern disk: 8 fixed pattern film + blank, the pattern has a jitter function;

     A rotating pattern disk: 6 replaceable rotation pattern piece + blank; can do two-way variable speed rotation effect

Prism: prism, do two-way variable speed rotation effect

Focus: electronic focus

Zoom in: 12 ° -35 °

Dimming: 0-100% linear dimming

Light strobe: independent two-piece strobe (1-12 times per second high-speed strobe effect)

Aperture: 5-100% linear adjustment

Light body scanning: running smooth, automatic return to correct function, adjustable speed, with 16Bit precision adjustment)

Scanning range: Horizontal 450 °, vertical 270 °

Cut light: with XY + pattern + color + CTC + prism cutting function

Cooling system: forced convection cooling

Control: DMX 512, three-core interface

Channel: 22

Display: LCD liquid crystal display, Chinese and English intelligent operation interface

Protection class: IP20, built-in overheating and triggering high voltage protection

Net weight: 39Kg

Gross Weight: Carton: 44Kg; Air Box: 66Kg

Light body size: length 465 × width 380 × height 700 (mm)

Packing size: carton: length 515 × width 485 × height 785 (mm)

         Air box: length 600 × width 510 × high 910 (mm)
